Product parameters
Specifications | |

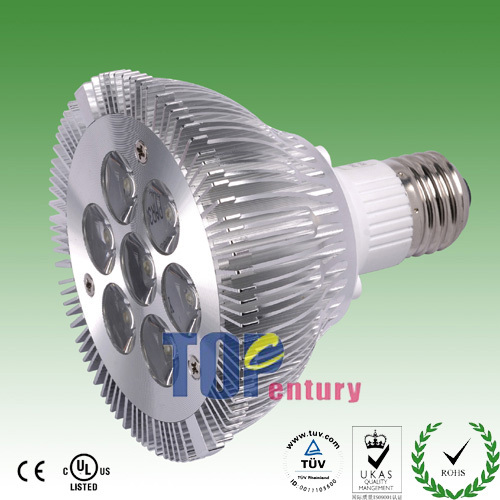

Type | A: SF-DPAR30-7W3 3500K angle 30 B: SF-DPAR30-7W4 4000K angle 30 C: SF-DPAR30-7W7 5700K angle 30 |
Dimensions | φ95mm×99mm |
Packaging Detail | Inner Box: 100X100X104mm (1pc), Outter Box: 320X320X435 (36pcs) 20' Container : Max: 15552 Pcs 40' Container : Max: 33596Pcs |
Material | Aluminum alloy base+ PC |
Input Voltage | AC90~140V to AC180-240V 50/60Hz |
Input Current | AC90~140V 140mA to AC180-240V 70mA |
Power Consumption | 9W |
EFFICIENCY | ≥84%,Color lndex:80PF:0.95,Class C for Harmonic CurrentEmition |
Illumination | 5500K@630Lumens,3500K@500Lumens |
LEDS | SMD LED 7PCS |
Temperature Rise | 10°C |
Working Temperature | -25°C to 45°C |
Lifetime | 50,000 hours |
Lumin Drop | 1,000HRS UNDER 2%,10,000HRS UNDER 10% 40,000HRS UNDER 30%,While Average Using under |
Certificate | TUV,CE UL RohsCertificate |
product featuresLED PAR20,PAR30,PAR38lamp
1. Cost low,power consumption other light source is 2 ~ 10 times than LEDlight source , and almost every month in device replacement, the cost ofreplacement and artificially aspects big;
2. Rapid response, LED tuberesponse time is very short. Using special constant-current source power LEDlight, for maximum illumination time less than 10ms;
3. Long life, LEDsemiconductor chips using solid energy into light energy,and silica gelencapsulation, can endure high strength mechanical impact, LED single pipe life100,000 hours, light source in 2 million hours above, by worked 12 hours a dayin the life of 5 years;
4. Good safety: solid-state light source, withoutcharging, no glass-shells;
5.Low power and high efficacy: generally under 3Wphotoelectric conversion efficiency reached more than 90%;
6. Rich color:color is diversiform, can satisfy all sorts of color lighting;
7. Smallvolume light weight: leds is a miniature light;
8. Environmental protection:abandoned device without the heavy metal pollution, beneficial to theenvironment.
Application of LED PAR20 PAR30 PAR38lamp
1. Widely used in hotels, guesthouses, synagogues, club, villas and lightinghigh class place decoration.
2. Store display, shop Windows, hotel,restaurant, indoor decorative lighting; Hall, art hall, museum, office, readingroom etc local lighting; Disco, bars, karaoke etc atmosphere lighting;Jewellery, gold and silver bracelet and fashion lighting
note
1. Please read theinstructions carefully before using
2. Make sure that shut off the powerbefore using
3. Please choose the correct voltage matching the product
4.The lamp, don't touch surface, do not look light source
How to choose and buy LED PAR20 PAR30PAR38 lamp?
In your choose and buy LED PAR20 PAR30 PAR380 lamp, not only should focus onprice, but also from the following several aspects to the comprehensiveassessment,
1, LED PAR20 PAR30 PAR38 lamp adopts chip: LED chip (also called LED chip)have domestic and Taiwan chip,
And import chip (including the United States chip, Japan chip, German chip,etc.),
But chip are different, the price difference is very big. Import LED chipsare expensive, and in the domestic market, very few people use
That is mainly aimed at high-end customers. The current in high-end customersgenerally chooses is Taiwan chip and American purui, price good.
2, LED PAR20 PAR30 PAR38 lamp bead color consistency: at present it has alot of encapsulation factory,There are many small encapsulation factory with nospectral color separation machine, so either not spectral color separation, oroutside sends.This is hard to guarantee for quality.
3, LED PAR20 PAR30 PAR38 lamp welding effect:LED PAR20 PAR30 PAR38 lampassembly points manual welding and machine welding two kinds,
Manual welding with soldering pen is welding. But this kind of practice isbringing the product appearance ugly.Esd protection measures is bad, many LEDchip is punctured. The machine is used for reflow soldering welding,Afterwelding products not only attractive appearance, and won't appear chip beelectrostatic burned-out phenomenon.
