Productparameters:
Type | A:SF-SY230220V324B4-001 3800K-4200K- B: SF-SY230220V324B8-001 5700K-6300K |
Dimensions | φ231mm×H146mm |
Material | Aluminum alloy base |
Input Voltage | AC90-240V 50/60Hz |
Power Consumption | 16W±10% |
EFFICIENCY | :≥92%,Color lndex:75-80PF:0.9,Class C for Harmonic CurrentEmition |
Illumination | 3800K-4200K@1300-1400Lumens, 5700K-6300K@1600-1700Lumens, |
LUX | 3500K@ Lux at 2m 117-127 Lux,Lux at 3m 58-68 Lux. 5500K@ Lux at 2m 137-147 Lux,Lux at 3m 68-78 Lux. |
LEDS | φ5mm LED 324PCS |
Temperature Rise | 10°C |
Working Temperature | -25°C to 45°C |
Lifetime | 35000 Hours |
Lumin Drop | 1,000HRS UNDER 5%,While average using under 12 hours per day. |
Certificate | TUV . CE . Rohs Certificate |
Product Features:
1. The design:

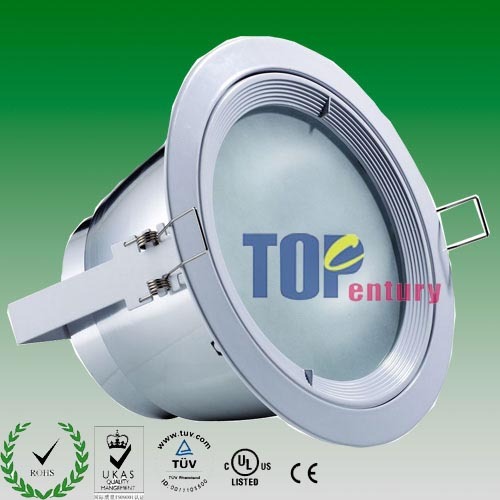

(1) LED canister light using new high brightness LED light source, doing topproduct emitting light colors have white (2700K - 9000K color temperature), red,green, blue, yellow and so on many kinds of color options;
(2) Using aluminum alloy enclosure, internal adopt special ventilationstructure design, product light weight, heat dissipation good, aestheticallybeautiful high-grade advantages;
(3) Lamp cover used toughened glass lid, pervious to light quality good, usesafety;
(4) Can AC100V - directly with utility (AC240V) connections, installationeasy to change.
2. Efficient province electricity:
(1) LED series canister light adopt efficient constant-current drivercircuit, conversion efficiency 90% . 8W LED canister light equivalent to 20Whalogen lamp brightness, save electricity rates as high as 67 percent.
(2) The LED canister light use life-span 35,000 hour above, and more than1,000 hours attenuation < 2%, 30,000 hours attenuation < 30%.
(3) Avoid the often replace product, reduce the maintenance management fees.And tonal unchanged, permanent new light.
3. Electrical stability:
(1) AC100V - AC240V wide voltage wide frequency 50 /60Hz input nostroboscopic,
(2) transient response quickly (without delay), without frequent switchdamage phenomenon, very suitable for switch "frequent, voltage fluctuation rangegreat occasion.
4. The environmental protection:
(1)canister light using new LED illuminant, do not contain mercury, lead onthe environmental pollution of heavy metals,
(2)glow very won't produce ultraviolet light, and therefore won't liketraditional lamps that, there are many mosquito around by light source,Indoorwill be more clean sanitation clean and tidy;
(3)Metal shell, constant flow driven innovation design makes productstransform electrical energy efficiency of light energy is very high, servicelife after eventually can be recycled and used again.
Application:
Becauseof high power cylinder color good consistency, lamps and lanterns choose color,can be high brightness, long service life, low energy consumption, greenenvironmental protection etc, the products are widely used in the synagogue,restaurants, exhibition halls and other places.
Warning:
1.Open the productpackaging should immediately check after the product is intact. Appearnon-artificial or specification requirement caused by fault, within retailerscan back directly or refund in manufacturer replacement.
2.If long-term neednot should be stored in a cool, dry and clean environment, banned in damp, hightemperature or in flammable and explosive place store and use.
3.Do notoptional remove, replacement devices.
4.This product not waterproof, not foroutdoor use.
5.Product for improvement or other causes parameters are subjectto change without notice.
